08-L12CLJ1-PW200AA Power Supply Board LED Driver for TCL TVs

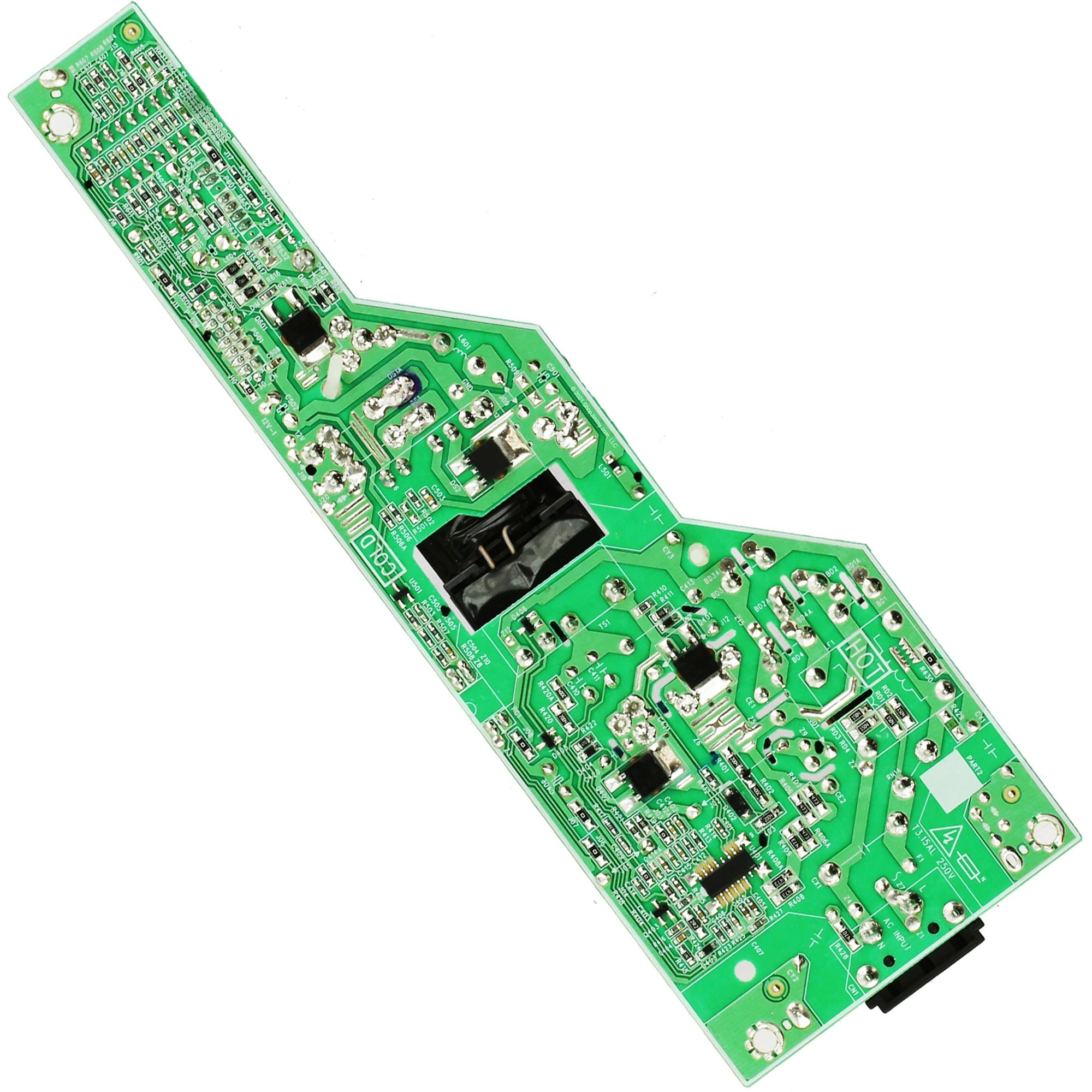

TCL 08-L12CLJ1-PW200AA Power Supply Board / LED Driver Replacement

Replace a failed TV power supply or LED driver board with this 08-L12CLJ1-PW200AA power supply board. This board is designed for select TCL televisions and combines power supply and LED backlight driver functions in one replacement board.

Before ordering, always compare the part number printed on your original board, connector locations, and board layout with the product photos. TV model number alone should not be used as the only compatibility check.

Part Number Identification

Known Compatible TCL TV Models

This power supply board is known to be used in the TCL TV models listed below. Always verify the board number inside your television before ordering.

Important: Match the Board Number Before Ordering

TV manufacturers may use different power supply boards within the same television model depending on production date, panel version, or manufacturing revision.

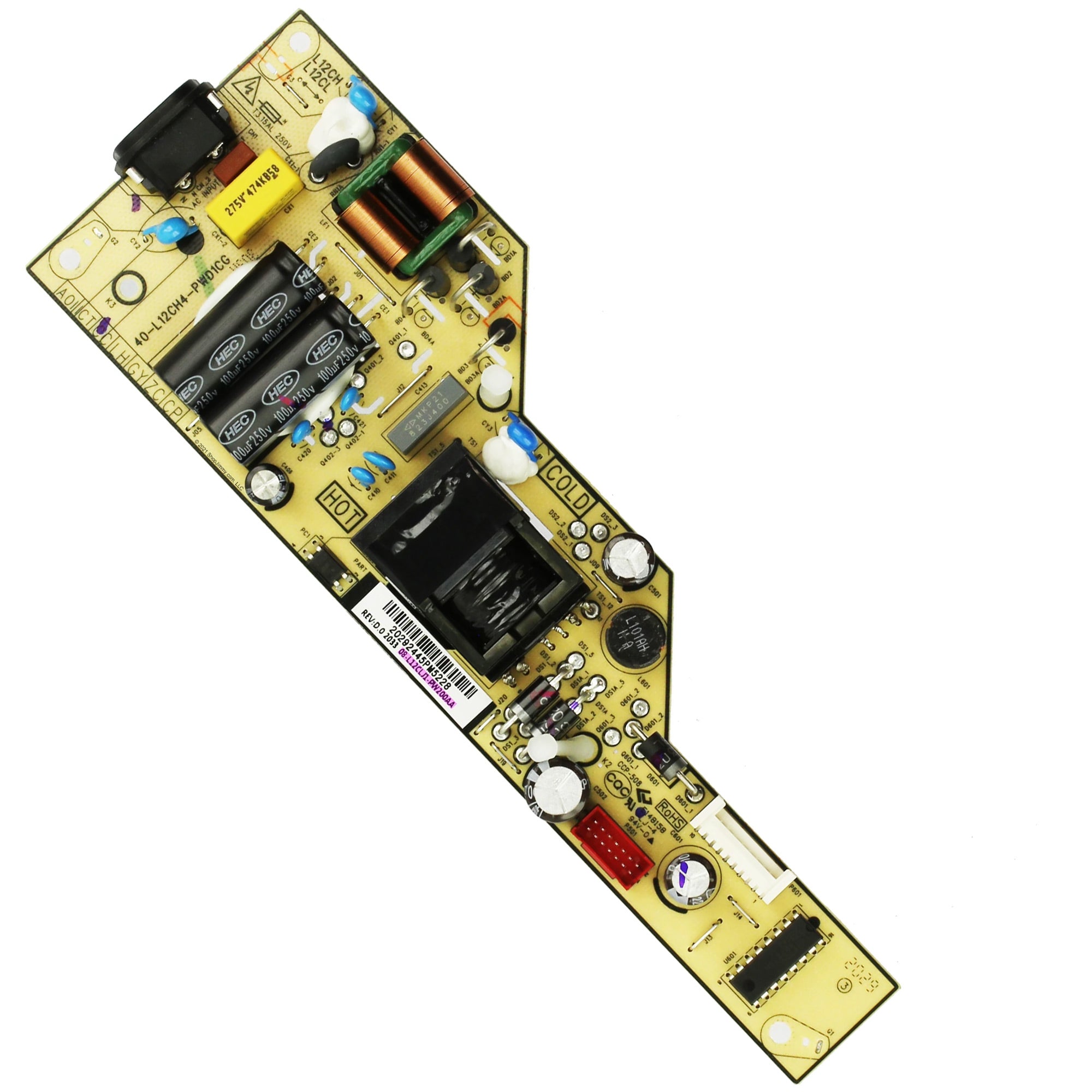

For the most reliable match, open the TV and compare your original board with 08-L12CLJ1-PW200AA and 40-L12CH4-PWF1CG, as well as the connector positions and overall board layout shown in the product photo.

When Might a Power Supply Board Need Replacement?

A failed power supply or LED driver board can be associated with several TV symptoms, including:

• TV will not power on
• No standby light or intermittent standby operation
• TV repeatedly powers on and off
• Backlight does not turn on
• Picture flashes briefly and then becomes dark
• Power-related operation becomes intermittent

These symptoms can also be caused by other TV components. Diagnose the television before replacing parts.

Installation Notes

Power supply board replacement generally requires removing the rear TV cover, disconnecting the wiring harnesses from the original board, removing the mounting screws, and installing the replacement board in the same position.

• Disconnect the TV from AC power before opening the cabinet.
• Photograph cable and connector positions before removing the original board.
• Handle the board by its edges whenever possible.
• Confirm every connector is fully seated before reassembling the television.
• Installation should be performed by someone familiar with electronic repair.

Electrical Safety

TV power supply boards contain high-voltage circuitry and capacitors that may retain electrical charge after the television has been unplugged. Do not work on the board while the TV is connected to AC power. If you are not experienced with electronic repair, professional installation is recommended.

What’s Included

• 1 × TCL 08-L12CLJ1-PW200AA Power Supply Board / LED Driver

Only the item shown and described on this product page is included unless otherwise stated.

Why Buy TV Replacement Parts from GuuYebe?

Frequently Asked Questions

Is this board compatible with my TCL TV?

This board is known to be used in select TCL models including 43S431, 43S433, 43S434, 43S435 and 43S446. However, the safest method is to verify the part number printed on the original board inside your TV.

What number should I match?

Look for 08-L12CLJ1-PW200AA. You may also see 40-L12CH4-PWF1CG printed on the board. Compare both the printed numbers and physical board layout with the product photos.

Is this a power supply board or an LED driver?

This assembly is identified as a Power Supply Board / LED Driver, meaning the board includes TV power supply functions together with circuitry used to drive the LED backlight system.

Will replacing this board fix a TV with no picture?

Only if the power supply or LED driver board is the cause of the failure. A no-picture condition can also be caused by failed LED backlights, the main board, panel-related problems, wiring, or other components. Diagnosis is recommended before ordering.

Does the product include installation tools or cables?

No. The listing is for the replacement power supply board / LED driver unless additional items are specifically shown or stated on the product page.
