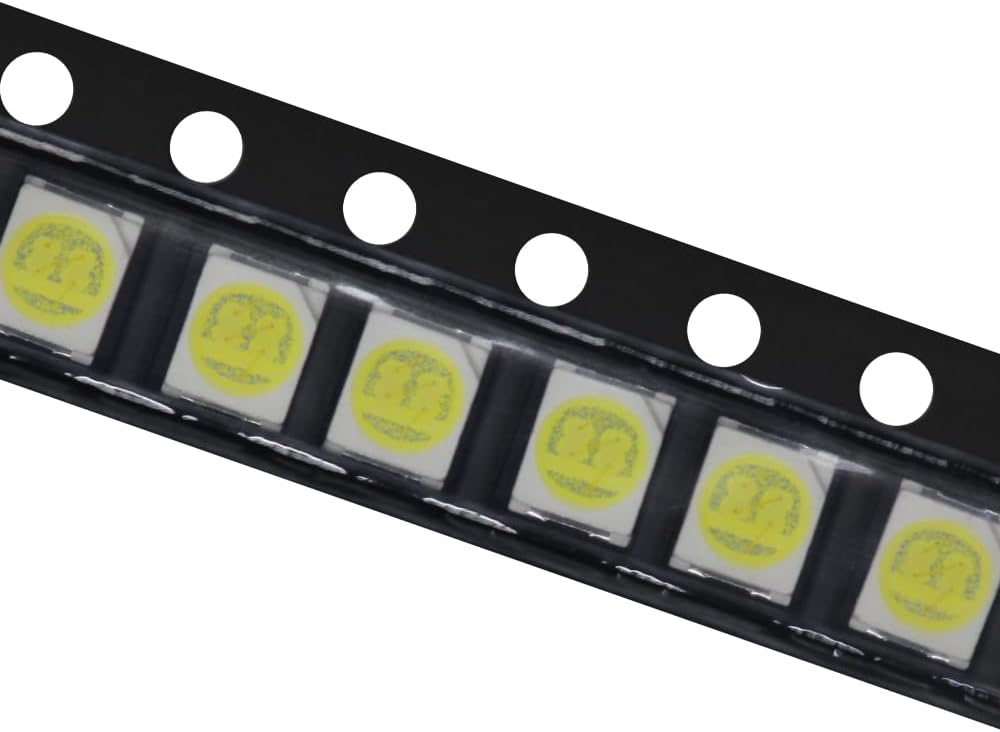

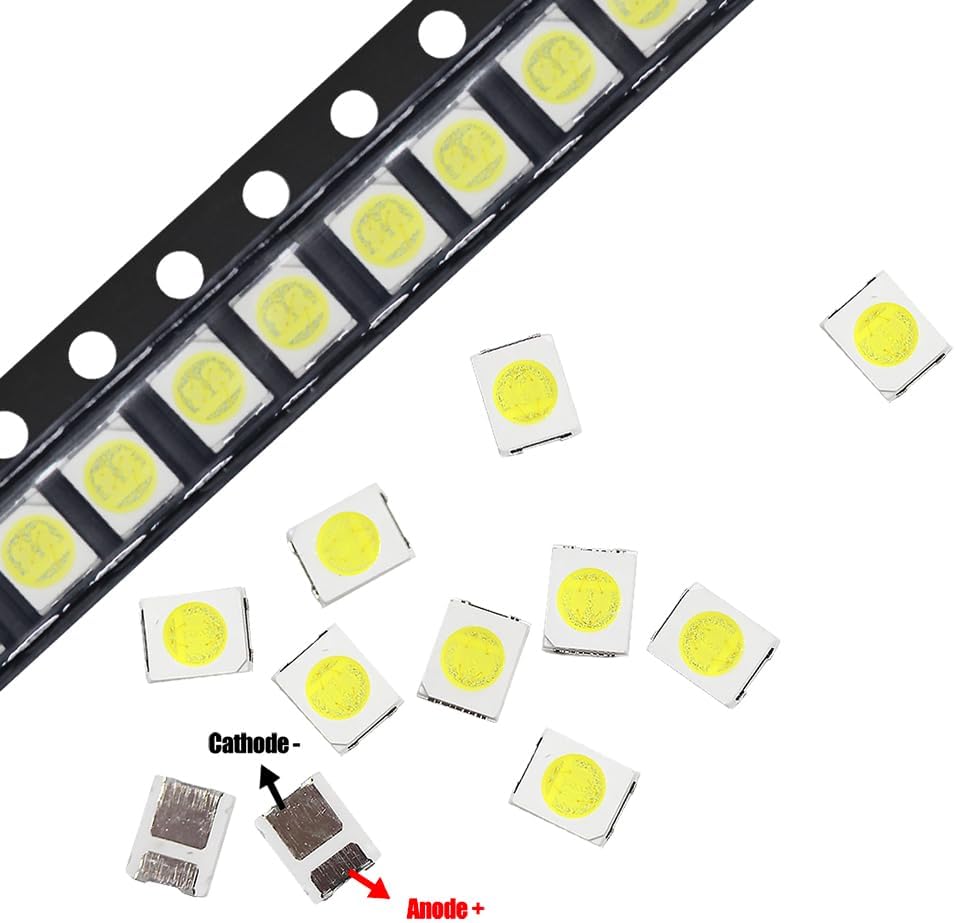

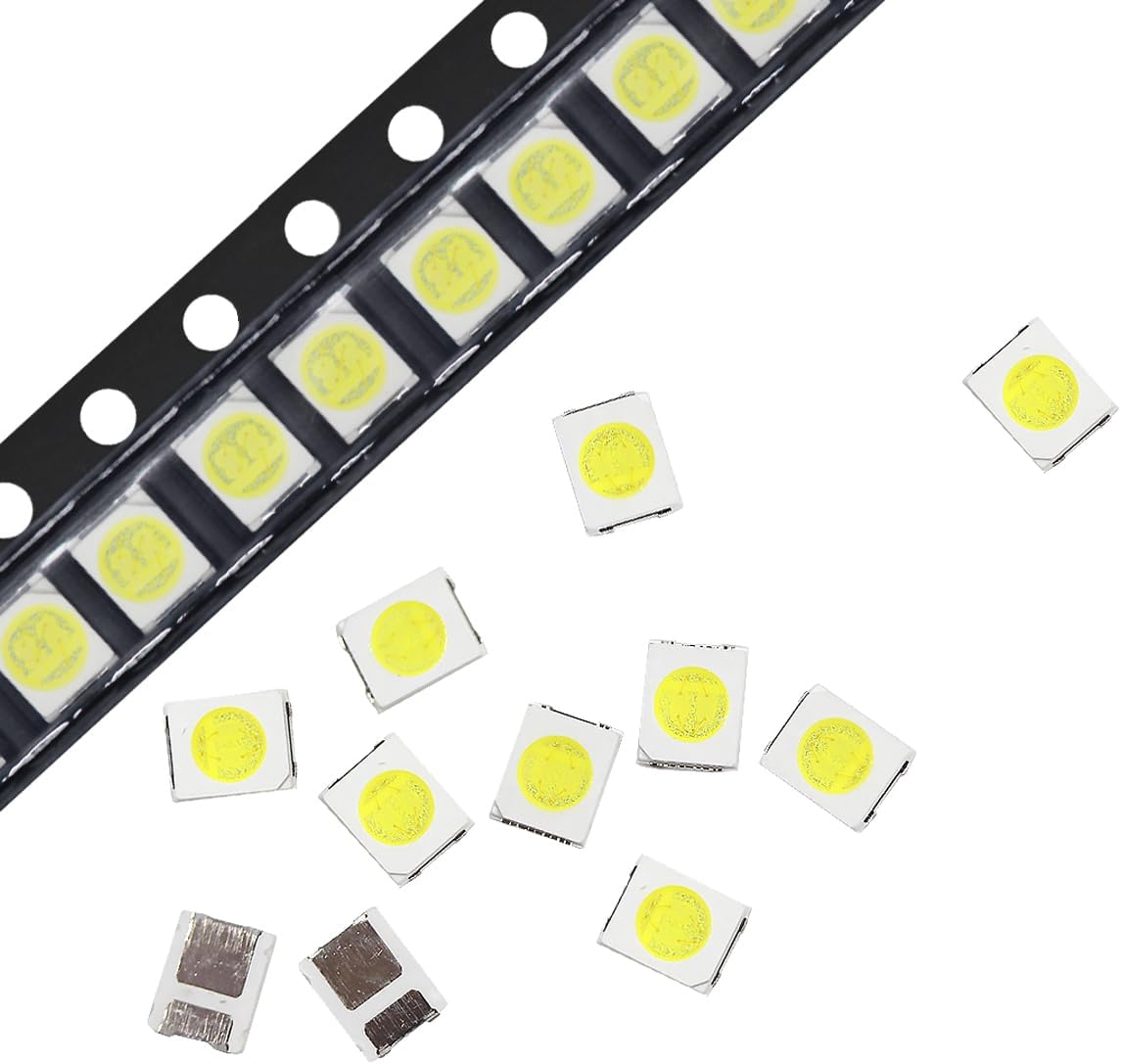

100pcs 6V 3528 2835 SMD LEDs Beads Sets Replacement LATWT470RELZK for led Backlight Strips LCD TV

About this item

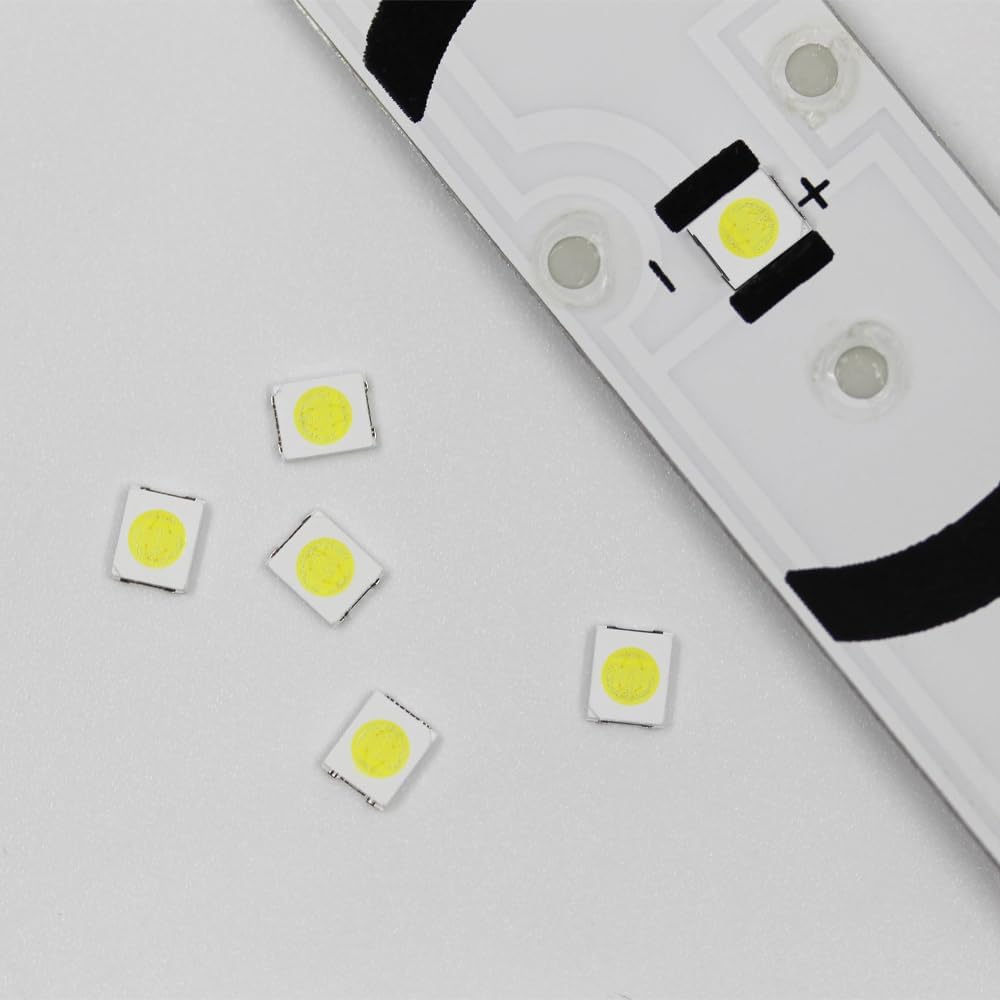

• Replacement led beads for 3528 2835 SMD LATWT470RELZK led Backlight strips LCD TV
• 1 lots include 6V - 2835 or 3528 LEDs Beads Low power consumption High Brightness

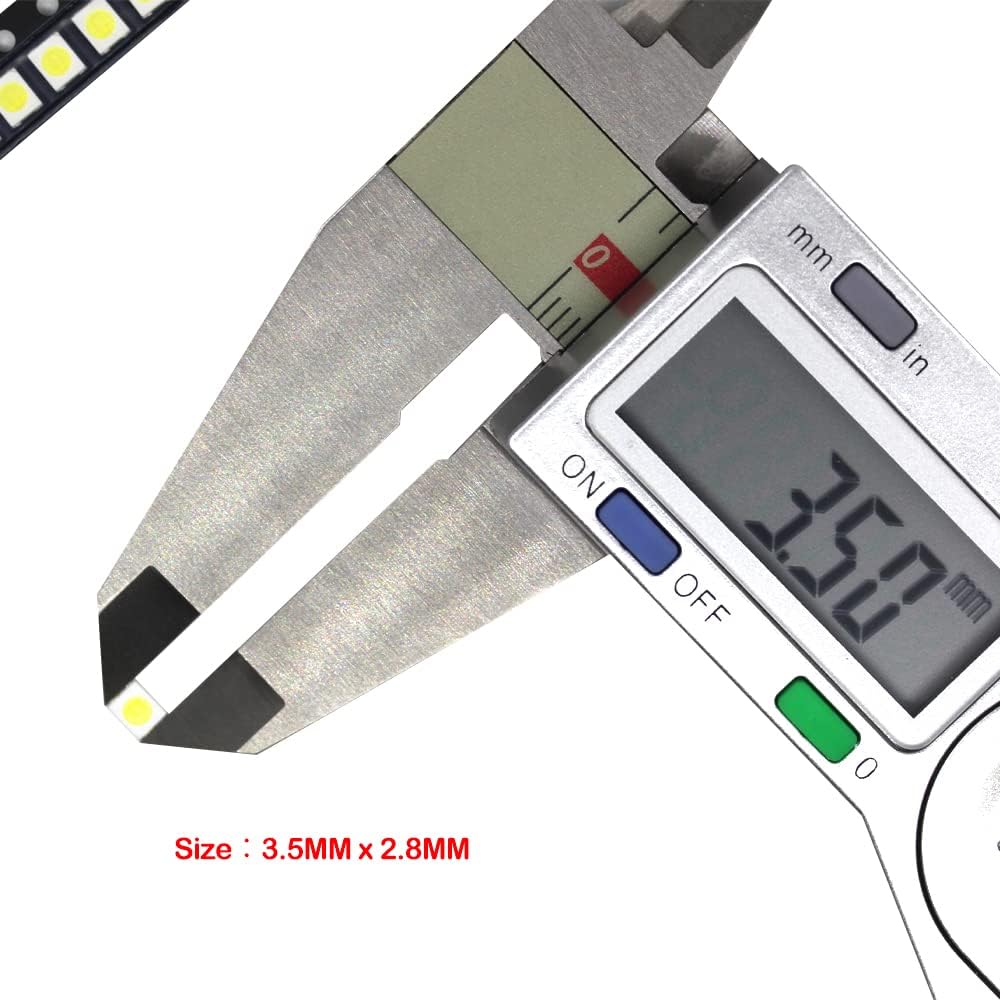

• Replacement led beads for ed Backlight strips LCD TV Lead Frame Type LED Package: 3.5×2.8×0.8 mm L×W×H d=mm
• 6V - Forward Voltage (VF): 6.4-6.6V (150mA ) Forward Current (IF ): 240mA Pulse Forward Current (IFp): 500mA Reverse Current (IR): 1uA Power Dissipation (PD): 1.5W Operatin Tgemperature (Topr): -40 - +100 ° C Storage Temperature (Tstg): -40 - + 100 °C Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs Hand Soldering: 350 °C for 3secs Luminous Flux (LM): 92-96LM ( 150mA ) Color Correlated Temperature (CCT): Viewing angle : 120°
• Compatible with: DIY pcb board circuit, bulk parts replacement, dashboard light up.

3528 2835 SMD LEDs Beads Sets Replacement LATWT470RELZK for Led Backlight Strips LCD TV

LED Backlight 3528 2835 lamp beads compatibles with(for) led backlight strip of Samsung / LG / Vizio / Element /Sony / Hisense / Sharp / Rca / TCL / Proscan / Philips / Westinghouse / Insignia / Toshiba / JVC

Stable Voltage in 6V for Repairing LCD LED TV Lamp beads

Product Type: 3528 2835

Product color temperature: 12000-15000K (cool white)

6V -Forward Voltage (VF): 6.4-6.6V (150mA )

Viewing angle : 120°
